Set Offset

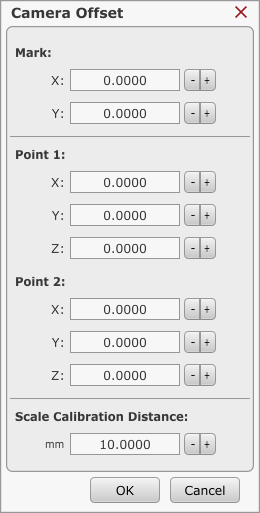

Opens dialog with current Mark, Point 1 and Point 2 values already populated (if Mark, Read1 and Read 2 actions were performed prior). Click OK to set Camera Offset.

How to set Camera two point offset:

  1. Open camera window with Machine/Camera/Show…
  2. Mark camera reference point on machine table. You can use marker, small drill, tool, … Whatever you find useful.
  3. Position tool exactly over this reference point and click: “Machine/Camera/Set Offset/Mark”
  4. Move machine and locate reference point with camera view. Use lowest Z level possible.
  5. When reference point is in center of camera cross-hair marker click: “Machine/Camera/Set Offset/Read 1”
  6. Now move Z to highest possible level where marker is still visible on camera view and center it.
  7. When camera reference point is in center of camera cross-hair marker click: “Machine/Camera/Set Offset/Read 2”
  8. To set camera offset click: Machine/Camera/Set Offset → OK
