OptoCtrl 3/4 adapter is a device that opto-isolates Mk3/4 controller inputs from external devices such as rotary incremental encoders.
Its main function is to protect the input circuitry of Mk3/4 controller from any damage that may occur due to improper wiring or power surges at the side of externally connected device.
Also, using this adapter reduces electrical noise influence at controller inputs and makes up for easy connection of rotary incremental encoders
Adapter is available in two versions: NPN and PNP. Version used, depends on the type of external hardware.
As an example or reference, we used an Omron E6B2 rotary encoder. This encoder comes in multiple versions which differ on from another based on its output circuit. Diagrams below will serve as an example on how to connect rotary encoder, depending on what type of output circuit encoder uses.
Common types of output circuits of rotary encoder are as such:
Use NPN OptoCtrl 3/4 adapter:
Output wires of E6B2 CWZ6C encoder:
Black wire is encoder’s OUTPUT A → connect to ENA input
White wire is encoder’s OUTPUT B → connect to ENB input
Orange wire is encoder’s OUTPUT Z → connect to IDX input

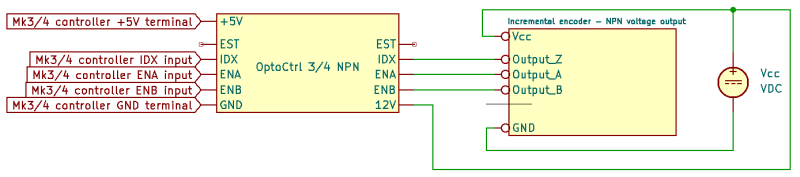

Use NPN OptoCtrl 3/4 adapter:
Output wires of E6B2 CWZ3E encoder:
Black wire is encoder’s OUTPUT A → connect to ENA input
White wire is encoder’s OUTPUT B → connect to ENB input
Orange wire is encoder’s OUTPUT Z → connect to IDX input

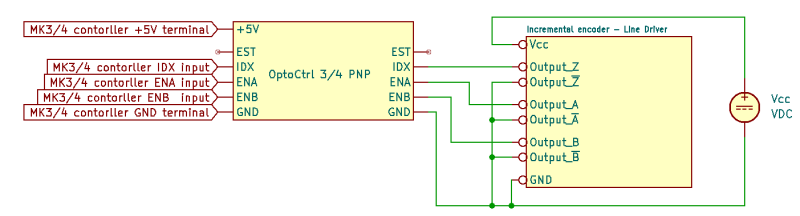

Use PNP OptoCtrl 3/4 adapter:
Output wires of E6B2 CWZ1X encoder:
Black wire is encoder’s OUTPUT A → connect to ENA input
White wire is encoder’s OUTPUT B → connect to ENB input
Orange wire is encoder’s OUTPUT Z → connect to IDX input
Black/Red wire is encoder’s OUTPUT /A → connect to GND
White/Red wire is encoder’s OUTPUT /B → connect to GND
Orange/Red wire is encoder’s OUTPUT /Z → connect to GND
Use PNP OptoCtrl 3/4 adapter:

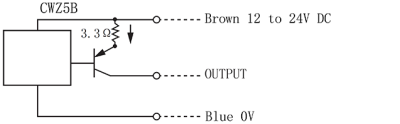

Output wires of E6B2 CWZ5B encoder:
Black wire is encoder’s OUTPUT A → connect to ENA input
White wire is encoder’s OUTPUT B → connect to ENB input
Orange wire is encoder’s OUTPUT Z → connect to IDX input
Use NPN OptoCtrl 3/4 adapter:
Output wires of E6B2 CWZ5G encoder:
Black wire is encoder’s OUTPUT A → connect to ENA input
White wire is encoder’s OUTPUT B → connect to ENB input
Orange wire is encoder’s OUTPUT Z → connect to IDX input

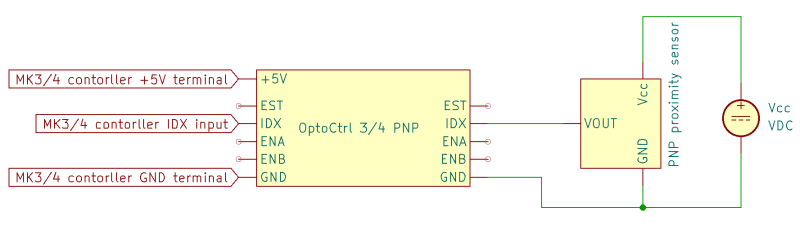

Use PNP OptoCtrl 3/4 adapter:
Output wires of E6B2 CWZ5B encoder:
Black wire is encoder’s OUTPUT A → connect to ENA input
White wire is encoder’s OUTPUT B → connect to ENB input
Orange wire is encoder’s OUTPUT Z → connect to IDX input
Warning!!!
Both, NPN and PNP OptoCtrl 3/4 versions of adapter need to be supplied with +5V from Mk3/4 controller. 5V from Output the output terminal should be used.
Both terminals of the +5V connector, located on the OptoCtrl 3/4 adapter are connected to 5V.
Do not connect GND signal wire to this connector!!!
