Motion

This settings tab deals with machine motion in 3D space (from effector (tool) point of view). Short explanation: With use of combined motors per axis and special mechanics you can achieve movement which doesn’t follow the same kinematic rules as linear motion CNC’s. At that moment we do not perceive each motor as independent axis but as a system, which movement is result of simultaneous motion of multiple motors. Examples of such machines are H-bot, Delta printer or multiple axis machines.

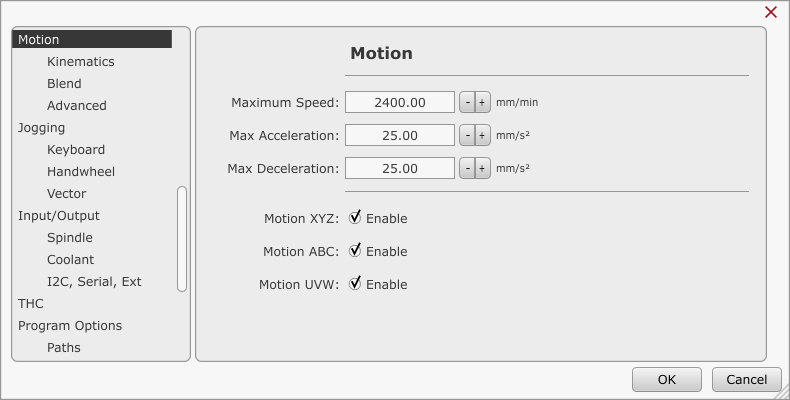

You can configure motion related parameters such as maximum machine/effector speeds, acceleration, deceleration. Machine motion range, blend and advanced settings.

Maximum Speed

Sets maximum speed of tool/effector. Tool/effector will not exceed speed value set with this parameter.

Max Acceleration

Sets maximum acceleration of tool/effector. Tool/effector will not exceed acceleration value set with this parameter.

Max Deceleration

Sets maximum deceleration of your tool/effector. Tool/effector will not exceed deceleration value set with this parameter.

Motion XYZ

When enabled, min and max speed calculation will consider XYZ linear axes.

Motion ABC

When enabled, speed calculation will consider ABC linear axes.

Motion UVW

When enabled, speed calculation will consider UVW linear axes.
